What is an Open Path Infrared Gas Detector? An In-Depth Guide
In industries where hazardous gases are present, safety is of utmost importance. One of the key technologies used to detect the presence of dangerous gases in the environment is the Open Path Infrared Gas Detector. This advanced detection system is designed to provide a wide-area monitoring solution for the presence of combustible gases and toxic gases, ensuring safety and compliance with environmental regulations.
Understanding Open Path Infrared Gas Detection

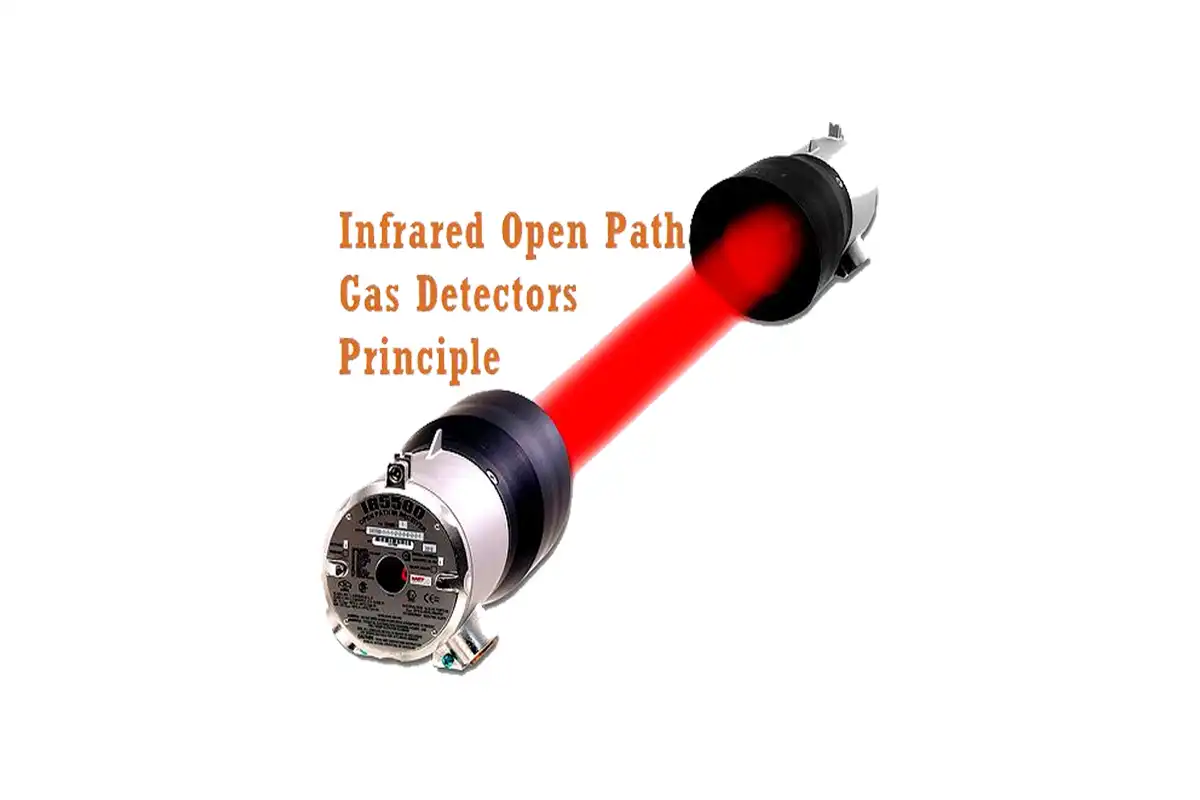

An Open Path Infrared (OPIR) Gas Detector is a sophisticated instrument that uses infrared light to detect the presence of gases over a specific path length in open spaces. Unlike point detectors that monitor a single point, OPIR detectors can monitor a large area, making them ideal for perimeter monitoring and large industrial sites. The system consists of a transmitter that emits an infrared beam and a receiver that detects any absorption of the beam by the target gas.
How Does an Open Path Infrared Gas Detector Work?
The principle behind OPIR gas detection is based on the absorption of infrared light by gas molecules. When the infrared beam passes through the atmosphere, certain gas molecules absorb specific wavelengths of the infrared light. The detector measures the amount of light that reaches the receiver compared to what was emitted. If the light is absorbed by the gas, the detector identifies the presence of the gas and triggers an alarm if the gas concentration exceeds predefined thresholds.
The Components of an Open Path Infrared Gas Detector
Typically, an OPIR gas detector system includes:
- Transmitter: Emits a continuous or pulsed infrared beam across the open path.
- Receiver: Positioned at a distance from the transmitter, it detects the amount of infrared light that reaches it.
- Signal Processor: Analyzes the received signal and determines whether the target gas is present in the monitored area.
Advantages of Open Path Infrared Gas Detectors
There are several advantages to using OPIR gas detectors in industrial applications:
- Wide Area Coverage: OPIR detectors can monitor large open spaces, making them ideal for perimeter monitoring.
- High Sensitivity: Capable of detecting low concentrations of gases over extended distances.
- Real-Time Monitoring: Provides continuous monitoring and immediate detection of gas leaks.
- Reduced Maintenance: Fewer sensors required compared to point detectors, leading to lower maintenance costs.
- Non-Intrusive Detection: The infrared beam does not interfere with the process environment.
Applications of Open Path Infrared Gas Detectors
OPIR gas detectors are used in various industries to enhance safety and prevent catastrophic events. Some common applications include:
Oil and Gas Industry
In the oil and gas industry, the detection of hydrocarbons is crucial to preventing fires and explosions. OPIR detectors are often deployed along pipelines, around storage tanks, and in refineries to provide comprehensive monitoring. For instance, the Dräger Polytron Pulsar explosion-proof gas detector is specifically designed to deliver reliable gas detection in hazardous environments.
Chemical Plants
Chemical plants use OPIR detectors to monitor the presence of toxic gases, such as ammonia or chlorine, which can pose severe risks to workers and the environment.
Industrial Manufacturing
In industrial manufacturing facilities, OPIR detectors are used to detect flammable gases, ensuring that production processes are safe and in compliance with safety regulations. The General Monitors IR5500 Open Path Infrared Gas Detector is an example of a reliable detector that provides robust monitoring for such applications.
Perimeter Monitoring
OPIR detectors are ideal for perimeter monitoring in large facilities, such as gas plants and storage terminals, where they can cover long distances and detect any gas leaks that occur along the facility’s boundary.
Frequently Asked Questions (FAQs) About Open Path Infrared Gas Detectors
1. What is the difference between point gas detectors and open path infrared gas detectors?
Point gas detectors monitor a single point or location for gas presence, whereas open path infrared gas detectors monitor a large area or “path” between a transmitter and receiver. OPIR detectors are more suitable for wide-area monitoring and detecting gas leaks over long distances.
2. How accurate are open path infrared gas detectors?
OPIR gas detectors are highly accurate and sensitive, capable of detecting very low concentrations of gases over extended distances. Their accuracy is influenced by factors such as the quality of the infrared source, the distance between the transmitter and receiver, and environmental conditions.
3. What gases can be detected using an open path infrared gas detector?
Open path infrared gas detectors are primarily used to detect hydrocarbons (e.g., methane, propane) and some toxic gases like ammonia. The specific gases that can be detected depend on the absorption characteristics of the gas and the wavelength of the infrared light used.
4. How do environmental conditions affect the performance of an open path infrared gas detector?
Environmental factors such as fog, rain, snow, and dust can affect the transmission of the infrared beam and reduce the detector’s accuracy. However, modern OPIR detectors are designed to compensate for these conditions to maintain reliable operation.
5. What maintenance is required for open path infrared gas detectors?
OPIR gas detectors require regular calibration and occasional cleaning of the transmitter and receiver lenses to ensure optimal performance. Compared to point detectors, they generally require less frequent maintenance due to fewer sensors being needed to cover large areas.
6. Can open path infrared gas detectors be integrated with existing safety systems?
Yes, OPIR gas detectors can be integrated with existing safety systems, such as fire alarm systems, emergency shutdown systems, and process control systems, to provide comprehensive safety monitoring and automated responses to gas leaks.
Conclusion
Open path infrared gas detectors are a critical component of safety systems in industries where the presence of hazardous gases poses significant risks. Their ability to monitor large areas in real-time, coupled with their high sensitivity and low maintenance requirements, make them an invaluable tool in ensuring the safety of personnel and the environment. Whether you’re in the oil and gas industry, chemical manufacturing, or any other sector that deals with dangerous gases, investing in an OPIR gas detector is a proactive step towards preventing accidents and safeguarding your operations.
To explore a range of reliable gas detection solutions, including the Dräger Polytron Pulsar and the General Monitors IR5500, visit our Gas Detectors product category page.
