Spectrex 20/20LB Flame Detector

Introduction to Spectrex 20/20LB Flame Detector

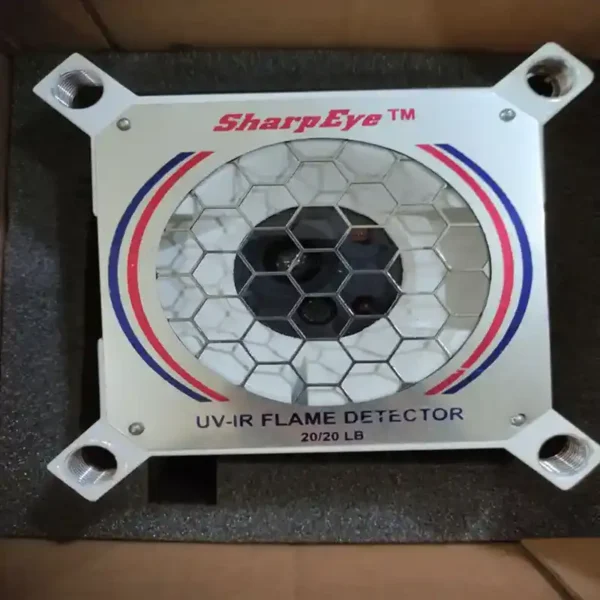

The Spectrex Sharp Eye 20/20LB flame detector, equipped with UV (0.185 – 0.260 microns) and IR (2.5-3 microns) sensors, is designed to detect fires involving hydrocarbons, hydroxyls, hydrogen, metals, and inorganic materials. It features three relays (alarm, fault, and auxiliary), 3/4-inch conduit entries, IP66 and IP67 resistance, NEMA 250 6P certification, and an aluminum housing, ensuring exceptional performance.

New Generation: UV/IR Flame Detector Sharp Eye 20/20LB

The UV/IR flame detectors like the Sharp Eye 20/20LB incorporate Built-In Test (BIT) functionality, representing an enhanced version of UV/IR detectors. These models utilize advanced processors and algorithms, providing high sensitivity and improved safety by minimizing unnecessary alarms.

Wide Range of Applications

These advanced flame detectors, backed by successful experience in flame detection technology, have been developed for industrial, military, and commercial applications. Both models are designed to detect fires involving hydrocarbons, hydroxyls, hydrogen, metals, and inorganic materials.

Operating Principles

The UV/IR detector senses energy in the short-wave section of both the ultraviolet and infrared electromagnetic spectra. The UV sensor includes a specific logic circuit to prevent false alarms caused by solar radiation, while the IR sensor is sensitive to radiation in the 2.5 to 3.0 micron range. Signals from both sensors are analyzed for frequency, intensity, and duration, generating an alert signal by simultaneously matching radiant energy in both sensors.

Features and Capabilities

• Dual UV/IR sensors
• High-speed responsiveness
• User-configurable settings
• Immunity to false alarms
• Standard 4-wire connection
• 4-20 mA source (3-4 wires)
• Minimum MTBF of 100,000 hours
• 3-year warranty

Applications

The Spectrex 20/20LB Flame Detector is suitable for:

• Aerospace industry: Hydroxyl, hydrogen, and hydrazine fuels
• Aircraft hangars: Wheel wells, under-wing and over-wing protection
• Automotive: Production areas, paint spray booths
• Chemical industries: Production, storage, transportation
• Explosives and munitions: Handling and storage
• Paint facilities: Manufacturing
• Petrochemicals: Production facilities, storage, transportation
• Pharmaceutical industry
• Polymers and adhesives: Manufacturing and curing
• Power generation facilities: Pump areas, generator rooms, unmanned stations, gas and coal-fired reactors
• Printing industry: Solvent handling, presses, drying processes
• Warehouses: Flammable material storage facilities

Summary

The Spectrex Flame Detector Model 20/20LB, designed for explosive environments, offers robust flame detection capabilities crucial for ensuring safety in hazardous locations such as refineries, chemical plants, and oil rigs. With its advanced UV/IR technology, rapid response time, and resistance to false alarms, it is an indispensable choice for industries requiring reliable flame detection systems.

FAQs about Spectrex Flame Detector Model 20/20LB

What is the Spectrex 20/20LB flame detector?

It’s an advanced detector using UV and IR sensors to detect various types of fires, ensuring safety in hazardous environments.

What are the key features of the Spectrex 20/20LB?

Dual UV/IR sensors, high-speed response, immunity to false alarms, user-configurable settings, and a 3-year warranty.

How does the UV/IR detection technology work?

UV sensors detect short-wave UV radiation, while IR sensors sense specific IR wavelengths, minimizing false alarms through advanced signal analysis.

Where can the Spectrex 20/20LB be used?

It’s suitable for aerospace, automotive, chemical, petrochemical, pharmaceutical, power generation, and other industries handling flammable materials.

What certifications does the Spectrex 20/20LB have?

It is certified with IP66 and IP67 ratings, NEMA 250 6P, ensuring durability and performance in harsh environments.

What are the benefits of using the Spectrex 20/20LB?

Enhanced safety, reliability in detecting various types of fires, and compatibility with diverse industrial applications.
