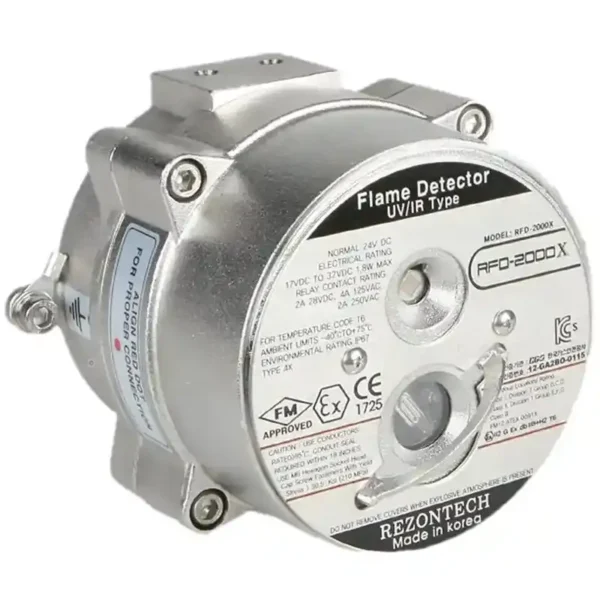

Rezontech RFD-2000X Flame Detector

Rezontech RFD-2000X Flame Detector: An In-Depth Review and Introduction

Cutting-Edge UV/IR Technology: A Top Contender in the Industry

The Rezontech RFD-2000X UV/IR Flame Detector stands out with its unique features and exceptional performance, positioning itself as a formidable competitor to leading brands such as Spectrex 40/40L4B, Honeywell Fire Sentry FS20X-211, Honeywell Fire Sentry SS4, and Detronics (Netsafe/X520).

Advanced Flame Detection Technology

The UV/IR Flame Detector RFD-2000X employs cutting-edge UV/IR technology, ensuring no flame goes undetected. By combining infrared and ultraviolet rays, this detector offers swift and accurate flame detection, providing continuous safety.

Robust Performance in Varied Environmental Conditions

Designed to withstand diverse environmental conditions, the RFD-2000X is an ideal detector for various industries. Its resistance to dust, ambient light, and temperature fluctuations makes it a perfect choice for challenging environments. This detector’s flawless performance, regardless of conditions, is its most significant feature.

Ensuring Safety and Fire Prevention

With the RFD-2000X Flame Detector, your safety reaches new heights. Featuring advanced capabilities and reliable performance, this detector guarantees timely warnings even in difficult circumstances. Preventing fires and safeguarding resources and the environment are key benefits of using this intelligent detector.

Advantages and Features of the RFD-2000X Flame Detector

Rezontech, a globally recognized manufacturer in the IR3 and UV/IR categories, exports its products to over 50 countries with worldwide certifications.

• Comparable with reputable industrial brands.
• Certified for explosion and dust resistance.
• Offers high-reliability automatic and manual detection capabilities.
• Suitable for hazardous areas such as oil fields, gas stations, and petrochemical plants.
• High detection range with a 90-degree cone of vision and up to 30 meters range.

Features:

• Adjustable sensitivity and delay settings.
• 90-degree horizontal and vertical field of view.
• Operating temperature range from -40℃ to +75℃.
• Humidity range from 0 to 95% relative humidity.

Comprehensive Specifications of the RFD-2000X

The RFD-2000X is a UV/IR flame detector developed by Rezontech Co., Ltd., tailored to detect flames across various applications, including oil and gas refineries, petrochemical plants, power plants, and warehouses.

This detector uses a dual-sensor design, combining ultraviolet (UV) and infrared (IR) sensors to enhance detection accuracy and minimize false alarms. The UV sensor identifies the ultraviolet radiation from flames, while the IR sensor detects the heat from flames. An alarm is triggered only when both sensors detect a flame simultaneously, reducing false alarms from sunlight, welding, or other UV/IR sources.

Key Features:

• Dual-Sensor Design: Enhances detection accuracy and reduces false alarms.
• Wide Detection Range: Up to 30 meters (100 feet).
• Broad Field of View: 90 degrees horizontally and vertically.
• Hazardous Area Suitability: Rated for Class I, Division 1, Groups B, C, and D, and Class II, Division 1, Groups E, F, and G.
• User-Selectable Sensitivity and Delay Time: Offers customization for specific needs.
• Self-Diagnosis: Both automatic and manual self-diagnosis capabilities.
• Output Options: Includes relay, 4-20mA, and RS-485 outputs.

Technical Specifications of the RFD-2000X

• Detection Range: Up to 30 meters (100 feet).
• Field of View: 90 degrees horizontally, 90 degrees vertically.
• Operating Temperature: -40°C to +75°C (-40°F to +167°F).
• Storage Temperature: -50°C to +80°C (-58°F to +176°F).
• Humidity: 0 to 95% relative humidity.
• Power Supply: Typical DC24V (17 to 32).
• Power Consumption: 1.8W maximum at 32 VDC.
• Enclosure Material: Stainless steel 316.
• Dimensions: W134 x H117 x D120 mm (W5.3 x H4.6 x D4.7 inches).
• Weight: 3.4 kg (7.5 lbs).

Conclusion

The Rezontech RFD-2000X is a highly reliable and versatile flame detector, perfect for a wide range of applications. Its dual-sensor design, broad detection range, and robust performance in hazardous environments make it an excellent choice for ensuring safety and preventing fires. By integrating advanced UV/IR technology and offering customizable settings, the RFD-2000X provides precise and dependable flame detection, safeguarding both people and property from fire hazards.

FAQ for Rezontech RFD-2000X Flame Detector

What technology does the Rezontech RFD-2000X Flame Detector use?

The RFD-2000X employs advanced UV/IR technology, combining ultraviolet and infrared sensors to ensure accurate flame detection and reduce false alarms.

In which environments can the RFD-2000X be used?

The RFD-2000X is designed to withstand varied environmental conditions, making it suitable for oil fields, gas stations, petrochemical plants, and other hazardous areas.

How does the RFD-2000X minimize false alarms?

By using a dual-sensor design, the detector requires both UV and IR sensors to detect a flame simultaneously, reducing false alarms from sources like sunlight and welding.

What are the key features of the RFD-2000X?

Key features include a wide detection range up to 30 meters, a 90-degree field of view, adjustable sensitivity and delay settings, and both automatic and manual self-diagnosis capabilities.

What certifications does the RFD-2000X hold?

The RFD-2000X is certified for explosion and dust resistance, making it reliable for use in hazardous environments.

What output options are available with the RFD-2000X?

The detector offers multiple output options, including relay, 4-20mA, and RS-485, ensuring compatibility with various safety systems.
