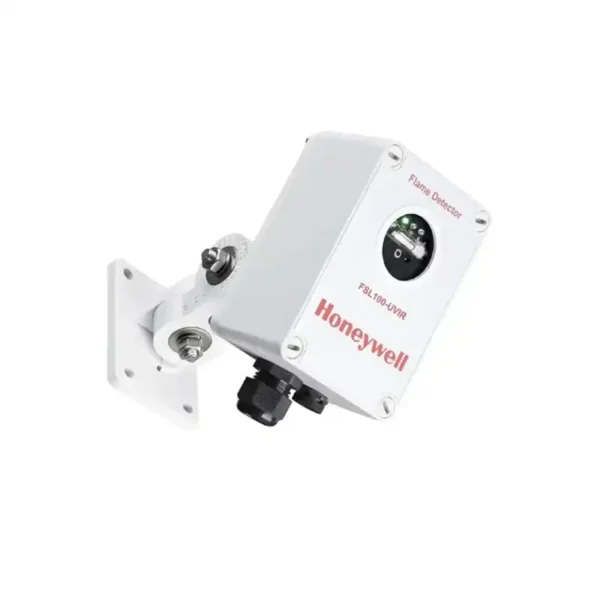

Honeywell FSL100 uv/ir Flame Detector
Triple Spectrum Detection (UV/UV/IR): Ensures accurate fire detection (hydrocarbon, non-hydrocarbon) with minimal false alarms.
Wide Detection Range: Up to 75 feet (23 meters) for the FSL100-UV/IR model.
Advanced Features:
Frequency analysis technology for enhanced false alarm rejection.
Resistant to ambient light sources (sunlight, artificial lights).
Automatic and manual self-testing for reliable operation.
Easy installation and maintenance.
Applications:
Industrial facilities (refineries, power plants).
Commercial buildings (warehouses, stores).
Transportation hubs (airports, seaports).
Various other applications requiring fire protection.
Description
Introducing the Honeywell FSL100 Flame Detector: Reliable Fire Detection
The Honeywell FSL100 UV/IR Flame Detector is a robust and fast tool designed for detecting fires across a wide spectrum of applications. This detector ensures that the safety of environments and applications is consistently maintained.
Spectrum Detection Versatility
Honeywell FSL100 flame detectors utilize UV, UV/IR, and IR3 spectra for detection. This versatility enhances confidence and improves product efficiency, ensuring minimal to zero false alarms.
Monitoring Hazardous Areas
FSL100 flame detectors monitor hazardous areas using invisible infrared or ultraviolet light outside the frequency range of visible flames, ensuring thorough surveillance.
Effective Detection Against Ambient Light
The Honeywell UV/IR FSL100 flame detector can identify hydrocarbon and non-hydrocarbon fires, withstanding direct and reflected sunlight, fluorescent and halogen lamps, and artificial light sources.
Frequency Analysis Technology
The FSL100-UVIR flame detector employs frequency flicker analysis to enhance false alarm rejection, capable of detecting hydrocarbon and non-hydrocarbon fires within approximately 75 feet (23 meters).
Technical Specifications
- Field of View: 90 degrees
- Response Time: 8 to 30 seconds
- Output: 4-20 milliampere and relay
- Reinforced Polycarbonate Case with Resistant Glass: Flame-retardant, corrosion-resistant, and UV-resistant
- Self-testing Sensors: Automatic self-testing
- Manual Self-check: Manual self-check feature
- IP65 Rating
- FM3260 Certification
- Suitable for Hazardous Area ATEX Zone 2/22
- EN54-10 Certification
Features of the Honeywell FSL100 Flame Detector
- Wide Detection Range: The FSL100 series detects a wide variety of flaming fires, including hydrocarbon and non-hydrocarbon fires.
- Rapid Response Time: Ensures quick fire detection for swift evacuation and enhanced safety.
- Easy Installation and Maintenance: Simple setup and operation without special tools or training.
- Reliable Operation: Designed for harsh environments with built-in self-testing for consistent performance.
Applications
The Honeywell FSL100 Flame Detector is ideal for diverse applications including:
- Industrial: Oil and gas refineries, petrochemical plants, power plants, manufacturing facilities
- Commercial: Warehouses, distribution centers, retail stores, office buildings
- Transportation: Airports, seaports, rail yards
- Others: Storage facilities, museums, libraries
Models
The Honeywell FSL100 Flame Detector is available in three models:
- FSL100-UV: Indoor applications, effective for low-temperature material burning like sulfur.
- FSL100-UV/IR: Indoor and outdoor applications, wider detection range than FSL100-UV.
- FSL100-IR3: Outdoor applications, particularly effective in detecting fires in flammable liquids and gases.
Additional Features
- Automatic Test Function: Built-in automatic test function ensures continuous detector functionality.
- Test Lamps: Available for manual detector testing across all FSL100 models.
- Relays and Current Output: Connections available for alarm systems and control equipment.
- Analog Stepped Output: Connects to fire alarm panels and other control systems.
Certifications
The Honeywell FSL100 Flame Detector complies with:
- FM 3260 Standard: Flame Detectors
- ATEX Directive 2014/34/EU: Equipment for Use in Potentially Explosive Atmospheres
Conclusion
In conclusion, the Honeywell FSL100 Flame Detector stands out as a versatile and reliable solution for fire detection across various applications. Its ease of installation, maintenance, and array of features make it an indispensable addition to any fire protection system.
FAQs about Honeywell FSL100 Flame Detector
- What spectra does the Honeywell FSL100 flame detector use for detection?
- UV, UV/IR, and IR3 spectra.
- How does the FSL100 handle ambient light interference?
- It can identify fires amidst direct sunlight, artificial light, and reflections.
- What is the range of the FSL100-UVIR detector?
- It can detect fires within approximately 75 feet (23 meters).
- What certifications does the Honeywell FSL100 have?
- FM3260, ATEX Zone 2/22, and EN54-10 certifications.
- What are the main applications of the Honeywell FSL100 Flame Detector?
- Industrial, commercial, transportation, and other sectors.
- What models are available for the Honeywell FSL100 Flame Detector?
- FSL100-UV, FSL100-UV/IR, and FSL100-IR3.
