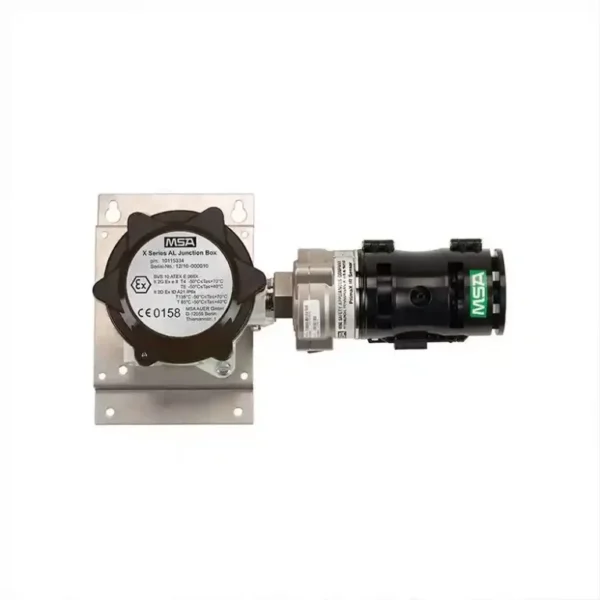

PrimaX MSA IR Gas Detector
- Standards: Compliant with EN 60079-0:2009, EN 60079-1:2007, IEC 60079-31:2009, EN 60079-29-1:2007, EN 50271:2010, and CE EMC Directive: 2014/30/EU.
- Explosion Protection: Rated II 2 G Ex d IIC T4 Gb for gas environments and II 2 D Ex tb IIIC T130° Db for dust environments.
- Ingress Protection: IP67 rated for dust and water resistance.
- Redundancy: Offers 100% redundancy with the failure of the 1st source.
- HART Compatibility: Supports HART 7.0 communication protocol for seamless integration.
Description
An Exceptional Gas Detector with Unique Design
The PrimaX MSA IR Gas Detector is a highly stable and reliable device capable of detecting hydrocarbon gases and vapors in harsh environmental conditions. This product features patented dual IR sources that provide continuous monitoring and significantly reduce the risk of interruption due to factors such as dust, rain, and fog.
Materials and Environmental Resistance
Constructed from 316L stainless steel, the PrimaX MSA IR Gas Detector boasts durability, while its sensor housing provides robust protection against harsh environmental conditions.
Strong and Efficient Output Signal
Equipped with a 4-20 milliamp output signal, this detector is factory calibrated and easily connects to stainless steel or aluminum junction boxes.
Convenient Accessories and Easy Calibration
The PrimaX MSA comes with a variety of accessories commonly used in many applications. Among these accessories is the calibration cap, which aids in performance enhancement and calibration with its LCD display.
Technical Specifications
- Detectable Gases: Methane, propane, toluene, n-butane, n-pentane, n-hexane, propylene, ethane, propylene oxide, acetone, cyclopentane, ethyl acetate, and isobutane.
- Temperature Range: 50 to 80+ degrees Celsius (58 to 176+ degrees Fahrenheit).
- Repeatability: ±1% of full scale.
- Sensor Warranty: 10 years for IR source.
- Input: 18-32 VDC, 5 watts (50 to +80 degrees Celsius).
Price and Purchase
For free technical consultation and guidance, please contact our experts at Respinatrade. Additionally, you can request the product catalog by clicking the button below.
At Respinatrade, we pride ourselves on being a leading supplier of high-quality equipment for various industries, including oil, gas, steel, cement, and food.
For more information about our certifications and to learn more about our company, please download and open the attached HTML file. It provides a comprehensive overview of our offerings and achievements.
We look forward to the opportunity to work together and support your business with our extensive range of solutions.
