Honeywell XNX Explosion-Proof Gas Detector

Introducing the Honeywell XNX Explosion-Proof Gas Detector: Advanced Gas Detection Technology

The Honeywell XNX Explosion-Proof Gas Detector is a state-of-the-art gas detection solution designed for hazardous environments. Known for its high sensitivity and accuracy, the XNX model offers fast response times, providing reliable monitoring to protect against explosive gases. By choosing the XNX gas detector, you ensure unparalleled protection and peace of mind in critical safety applications. Available Part Numbers for XNX Gas Detector

The XNX Series is available in several configurations to meet different application requirements.

• XNX-AMSI-NNNNN – Standard configuration for general use
• XNX-AMSV-NNCB1 – Version with CB1 sensor option for enhanced performance
• XNX-AMSE-NNNN – European model compliant with regional standards

Each part number represents a specific configuration optimized for industrial applications.

Need help selecting the right model? Contact our technical team for assistance.

Reliable & Flexible Gas Detection Transmitter

The Honeywell XNX Explosion-Proof Gas Detector is a flexible transmitter that interfaces with a wide range of Honeywell gas sensors. With its support for standard industrial outputs and configurable signal settings, the XNX enables seamless integration with various gas detectors, making it ideal for diverse gas detection systems across industries like oil & gas, chemical, and wastewater.

Why Choose the Honeywell XNX Gas Detector?

The XNX Explosion-Proof Gas Detector uses cutting-edge technologies to deliver effective gas detection. It incorporates electrochemical sensors, infrared detectors, and offers the flexibility to reconfigure the transmitter to meet specific application needs. Whether for upstream oil, downstream chemical, or industrial applications, the Honeywell XNX ensures maximum safety and efficiency in critical environments.

Key Features and Specifications of the Honeywell XNX

1. Extensive Configuration Options: The XNX gas detector allows for broad customization with various output signals.
2. Compatibility: Fully compatible with multiple Honeywell sensors and third-party detectors.
3. Large, Backlit LCD Display: Multi-language, clear and intuitive display for easy operation.
4. Optional HART Port: Facilitates quick diagnostics and configuration via HART-enabled devices.
5. Durable and Certified: Built for use in ATEX/IECEx hazardous environments, ensuring reliability and safety in explosive atmospheres.

Technical Specifications of the Honeywell XNX Gas Detector

• Model: Honeywell XNX Universal Transmitter Gas Detector XNXAMAV-RNCB1
• Output: HART over 4-20mA and 3 fault/alarm relays
• Certifications: ATEX/IECEx, 5 x M25 entries
• Material: LM25 aluminum (SS316 painted optional)
• Temperature Range: -40°C to +65°C (-40°F to +150°F, sensor dependent)
• Humidity Range: 20-90% RH (non-condensing)
• Operating Voltage: 18-24 VDC nominal (EC & mV units: 16-32 VDC; IR units: 18-32 VDC)

Product Overview

The Honeywell XNX is engineered as a user-friendly, low-maintenance universal gas detection platform. It supports a variety of sensors for flammable gases, including electrochemical, infrared, and catalytic bead technologies. With over 200 unique configurations, the XNX can be used in intrinsically safe and explosion-proof applications across industries such as oil & gas, chemical, wastewater, and pharmaceutical. The XNX transmitter integrates with other Honeywell equipment, including Searchline Excel and Optima detectors, and is compatible with industry-standard PLCs.

Comprehensive Sensor Support for Versatile Applications

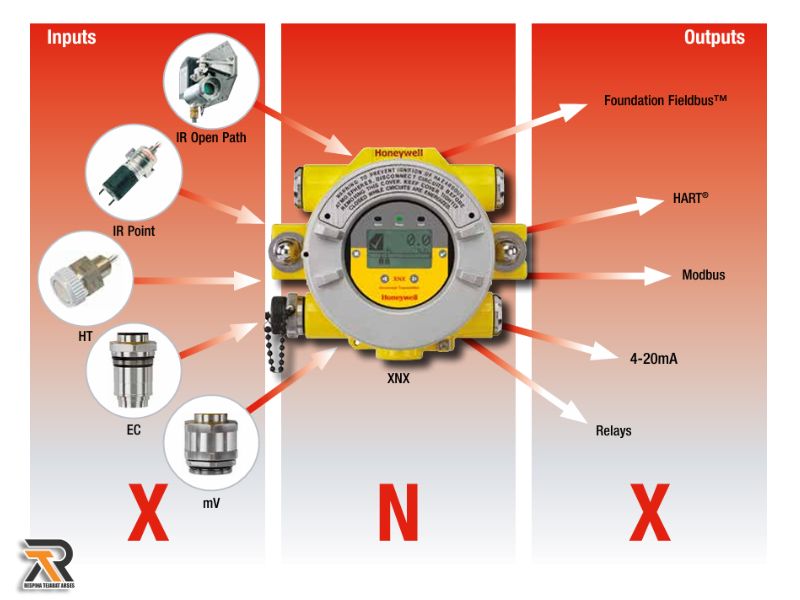

The Honeywell XNX supports various sensor types, offering exceptional flexibility and adaptability. With modular input and output options, this explosion-proof gas detector provides extensive integration capabilities with HART, Modbus, and Fieldbus protocols, ensuring seamless compatibility with existing safety systems. The XNX can be configured locally or remotely using appropriate accessories for gas monitoring.

Benefits of the Honeywell XNX Gas Detector

• Wide Sensor Compatibility: Compatible with a range of gas sensors on a common platform, offering cost-effective and time-saving solutions.
• High Performance: Detects flammable gases with high precision, from 0 to 100% LFL/LEL, in challenging environments.
• Flexible Detection Technology: Offers catalytic bead, electrochemical, and infrared sensors for broad gas detection coverage.
• User-Friendly Interface: Easy-to-read backlit LCD display supports eight languages, simplifying operation for users.
• Durability: Built to withstand tough industrial environments with a NEMA 4X IP66 rating.
• Cost-Effective: Simple installation and maintenance with minimal operational complexity, reducing training needs and operational downtime.

Conclusion: Why Choose the Honeywell XNX Gas Detector?

The Honeywell XNX Explosion-Proof Gas Detector delivers reliable and accurate gas detection with extensive flexibility and low-maintenance requirements. With a wide array of compatible sensors, certifications, and cutting-edge features, the XNX is the ideal choice for industries requiring dependable gas detection systems in hazardous environments.

FAQs About the Honeywell XNX Gas Detector

Q1: What makes the Honeywell XNX Explosion-Proof Gas Detector unique? The XNX is known for its high sensitivity, accurate gas detection, and flexibility to integrate with a wide variety of sensors and safety equipment in hazardous environments. Q2: What types of sensors are compatible with the Honeywell XNX Gas Detector? The XNX supports a broad range of sensors, including electrochemical, infrared, and catalytic bead sensors for diverse gas detection needs. Q3: How does the XNX Gas Detector integrate with other systems? The XNX integrates with Honeywell analytical gas sensors and supports various industrial outputs, including HART, Modbus, and Fieldbus, for easy system integration. Q4: What are the key features of the Honeywell XNX Gas Detector? Key features include broad sensor compatibility, a large LCD display, optional HART port, and certifications for use in explosive environments like ATEX/IECEx zones. Q5: In what environments can the Honeywell XNX Gas Detector be used? The Honeywell XNX is certified for use in hazardous environments such as oil & gas, chemical plants, wastewater treatment, and other industrial applications. Q6: What are the technical specifications of the Honeywell XNX Gas Detector? The Honeywell XNX operates in temperatures from -40°C to +65°C, features HART communication, and is available in stainless steel or aluminum enclosures for various industrial applications.
