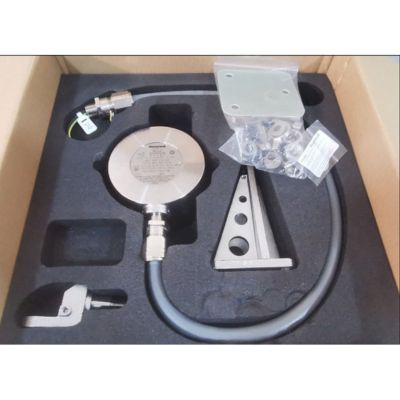

Honeywell Searchline Excel gas detector
-
Path Lengths: Medium Range 40m to 120m
-
Available Gases: Methane, Ethane, Propane, Butane, Pentane, Ethylene, Propylene, Butadiene
-
Range: 0 to 5 LEL.m
-
Output Signal: 4-20mA (maximum loop resistance 600 ohms; source & sink available) and RS485
Description
Product Overview:
The Honeywell Searchline EXCEL is an advanced open-path infrared gas detector, designed to detect a range of combustible gases with high accuracy and reliability. With a variety of path lengths ranging from 5 to 200 meters, this gas detector provides versatile options to suit different monitoring needs. It is widely used across industrial applications, ensuring maximum safety with a proven track record of over 25,000 units installed worldwide.
The device is available in various versions based on the detection range: Short, Medium, and Long Range, ensuring users can select the most suitable option depending on their specific application.
Key Features:
-
Wide Gas Detection Range: Detects multiple hydrocarbon gases such as Methane, Ethane, Propane, Butane, Pentane, Ethylene, Propylene, and Butadiene.
-
Quick Response Time: Less than 3 seconds, ensuring prompt identification of potential hazards.
-
Flexible Output: With 4-20mA output and RS485 digital communication, it can easily integrate into your existing monitoring systems.
-
Durable Construction: Built with stainless steel housing and certified for IP66 and IP67 ratings, ensuring protection against dust and water in harsh environments.
-
Global Compliance: Certified by ATEX, UL, and CSA for use in hazardous locations across Europe, North America, and Canada.
Applications:
Ideal for large industrial setups, such as:
-
Refineries
-
Chemical plants
-
Offshore oil rigs
-
Gas storage facilities
The Searchline EXCEL provides peace of mind by offering reliable and continuous gas monitoring, ensuring compliance with industry standards and protecting both personnel and assets.
Product Specifications:
-
Path Lengths: 40m to 120m (Medium Range)
-
Gas Types Detected: Methane, Ethane, Propane, Butane, Pentane, Ethylene, Propylene, Butadiene
-
Operating Temperature: -40°C to +65°C
-
Humidity: 0 to 99% RH (non-condensing)
-
Enclosure Material: 316 Stainless Steel
-
Alarm Settings: Low (1.0 LEL.m) & High (3.0 LEL.m)
-
Output Signal: 4-20mA and RS485 (Modbus)
-
Response Time: < 3 seconds
-
IP Rating: IP66 / IP67
For further details, please refer to the product catalog.
FAQs:
Q1: What gases can the Searchline EXCEL detect?
A1: It detects a range of combustible gases including Methane, Ethane, Propane, Butane, Pentane, Ethylene, Propylene, and Butadiene.
Q2: How fast is the response time of the Searchline EXCEL?
A2: The response time is extremely fast, less than 3 seconds under normal operating conditions.
At Respinatrade, we pride ourselves on being a leading supplier of high-quality equipment for various industries, including oil, gas, steel, cement, and food.
For more information about our certifications and to learn more about our company, please download and open the attached HTML file. It provides a comprehensive overview of our offerings and achievements.
We look forward to the opportunity to work together and support your business with our extensive range of solutions.
