Detcon FP-524C Gas Detector

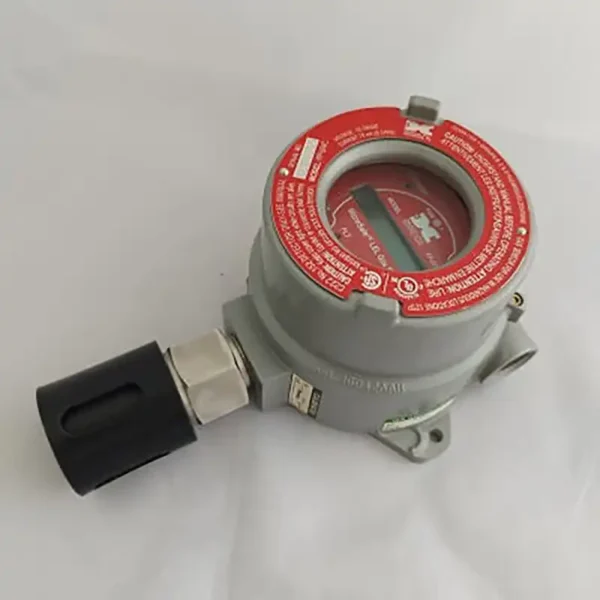

Introducing the Detcon FP-524C Gas Detector

The Detcon FP-524C Gas Detector is an advanced, non-intrusive sensor designed to detect combustible gases in the air. This intelligent micro-sensor utilizes cutting-edge technology to ensure precise monitoring and enhanced safety across various environments.

Key Features of the Detcon FP-524C Gas Detector

• Durable Stainless Steel Housing: Ensures durability and reliability even in the harshest conditions.
• Advanced Control Circuitry: Equipped with a sophisticated plug-in control transmitter circuit for seamless integration and superior performance.
• Explosion-Proof Design: Includes an explosion-proof baseboard connection and enclosure, making it suitable for high-risk environments.
• Wide Measurement Range: Detects a wide variety of combustible gases within the 0-100% Lower Explosive Limit (LEL) range.
• Matched-Pair Catalytic Bead Sensor: Ensures accurate and reliable gas detection.

Technical Specifications

• Sensor Type: Matched-Pair Catalytic Bead
• Measurement Range: 0-100% LEL
• Accuracy and Repeatability: ±3% for 0-50% LEL, ±5% for 50-100% LEL
• Response and Clearing Time: T50 <10 seconds, T90 <30 seconds
• Zero Drift: <5% per year
• Electrical Classification: Explosion-proof, Class I, Division 1, Groups B, C, D
• Safety Approvals: CSA/NRTL (Certified by US OSHA)

Additional Features

• Simple Calibration: Easy-to-use menu-driven calibration process that takes less than 3 minutes.
• User-Friendly Display: Backlit LCD and LED indicators for FAULT and CAL status, ensuring clear and immediate feedback.
• Wide Operating Temperature Range: -40°F to +167°F (–40°C to +75°C)
• Humidity Tolerance: 0-99% RH non-condensing
• Output and Input Voltage: Linear 4-20 mA DC, Input Voltage: 11.5-28 VDC

Applications of the Detcon FP-524C Gas Detector

• Industrial Facilities: Ideal for petrochemical plants, refineries, power plants, and other industrial environments where combustible gases are present.
• Commercial Buildings: Office buildings, warehouses, and other commercial spaces can benefit from the safety measures provided by this gas detector.
• Transportation: Perfect for monitoring oil and gas pipelines, storage tanks, and transportation infrastructure where combustible gases are handled.

Benefits of Using the Detcon FP-524C Gas Detector

• Enhanced Safety: Provides reliable detection of combustible gases, helping to protect workers and property from potential gas leaks.
• Reduced Downtime: Self-diagnostic and easy calibration features minimize downtime, ensuring continuous operation.
• Improved Efficiency: Non-intrusive design and user-friendly interface make maintenance quick and efficient, saving both time and resources.
• Comprehensive Fault Diagnostics: Fault diagnostics system alerts users to potential issues, ensuring reliable and consistent operation.

Additional Information

• Sensor Technology: Catalytic Bead (Pellistor)
• Housing: Explosion-Proof, IP66
• Approvals: CSA, ISA, ATEX/IECEx
• Options: HART Communications, Remote Display

The Detcon FP-524C Gas Detector is a versatile and reliable solution for detecting combustible gases in various environments. Its advanced features and robust design make it an essential tool for enhancing safety, reducing downtime, and improving efficiency in industrial, commercial, and transportation settings.

FAQs

What types of gases can the Detcon FP-524C Gas Detector detect?

The FP-524C can detect a wide range of combustible gases within the 0-100% Lower Explosive Limit (LEL) range.

How accurate is the Detcon FP-524C Gas Detector?

The FP-524C has an accuracy of ±3% for 0-50% LEL and ±5% for 50-100% LEL, ensuring precise gas detection.

What environments are suitable for using the FP-524C Gas Detector?

The FP-524C is ideal for industrial facilities, commercial buildings, and transportation infrastructure, particularly where combustible gases are present.

How long does it take to calibrate the Detcon FP-524C Gas Detector?

The calibration process is simple and menu-driven, taking less than 3 minutes to complete.

Is the Detcon FP-524C Gas Detector durable in harsh conditions?

Yes, it features a robust stainless steel housing and an explosion-proof design, making it reliable in extreme environments.

What safety certifications does the Detcon FP-524C Gas Detector have?

The FP-524C is certified by CSA/NRTL and meets US OSHA safety standards, ensuring high reliability and safety.
